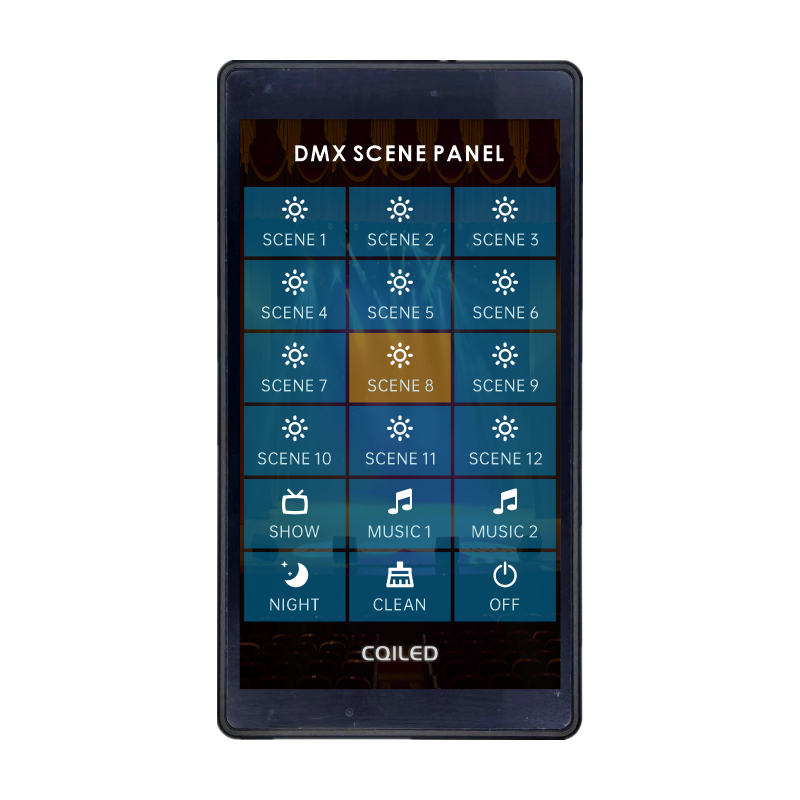

CQ-DSP05
5'' DMX Scene Panel

• Customizable theme, buttons and control parameters; configuration directly on screen
• Network interconnection, directly output UDP / OSC control commands
• Compatible with Nicolaudie, Sunlite, Daslight network DMX controllers
• Works with multi-brand 8-port LED main controllers
• Optional screen sizes: 4”/5”/8”/10” and larger
• Supports LED fixtures, musical fountains, stage lighting and DMX dynamic installations
• Scene switching, RGBW dimming & color tuning and CCT control available
• Unicast and broadcast dual modes; each page can control separate devices
• Multi-screen linkage, bidirectional synchronized control with tablets
• Built-in multiple color themes; background images uploadable via Web
• Multi-zone management; independent control for each zone without mutual interference
• Auto-lock configurable, administrator password provides dual security protection
• Support secondary confirmation for operations and welcome screen management
• Dual power supply: PoE / external 12VDC
• Compatible with standard 86-type back boxes and North American Gang boxes
• Neutral UI, customizable LOGO upload
